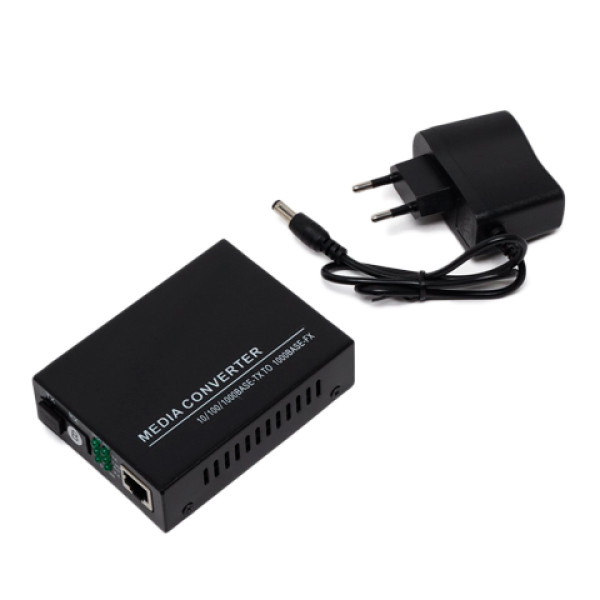

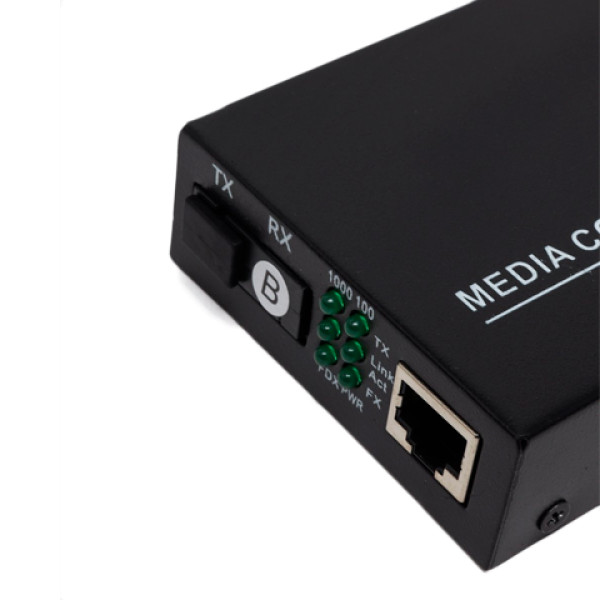

Медиаконвертер 10/100/1000 BASE-TX to 100/1000 BASE-FX (20KM)

Технические характеристики

1. Product Features:
> 1. Built-in high-performance kernel, Broadcast storm control. Flow control. CRC error checking;
> 2. 1000Base-FX fiber-optic transmission standard. Can be interconnected with other products;
> 3. Support IEEE802.3u Function;
> 4. Completely compatible with IEEE802.3/802.3u /802.3z auto-negotiation function;
> 5. Maximum transmission distance up to 120km;
> 6. Optional Function: Lightning Protected, Up to 4000 V;
> 7. Optional Function: POE Supported (PSE), Only stand alone;

2. Product protocol:
IEEE802.3 ETHERNET STANDARD
IEEE802.3u FAST ETHERNET STANDARD
IEEE802.3z ETHERNET STANDARD
IEEE802.3af POE STANDARD

3. Product Category:
> 1. According to Dimension:
Built-in Power Adapter MC
External Power Adapter MC
> 2. According to Number of Fiber:
Single-Fiber MC Dual-Fiber MC
> 3. According to Type of Fiber
Multi-mode MC Single-mode MC

4. Technical parameters:
Standard: IEEE802.3z 1000Base-T/SX/LX/ZX
UTP PORT: Twisted Pair RJ45
Fiber Connecter: ST, SC or FC
Rate: Twisted Pair 10/100/1000Mbps
Fiber 100/1000Mbps
Twisted Pair: Category 5E or Category 6
Fiber: Multimode, Single-mode
Power Adapter: 5V1A
12V1A(PoE) if with
Ambient temperature: 0~60°C
Store temperature: -20~70 °C
Humidity: 5%~90%, Non-condensing
Volume: 94 x 70 x 26mm (L x W x H)

5. Packing list:
Media Converter 10/100/1000Base-TX to 1000Base-FX - 1 set
AC/DC adapter - 1 pcs
Power Cable (International Adapter) - 1 pcs
User Manual - 1 pcs

Теги: Медиаконвертер, Media Converter
